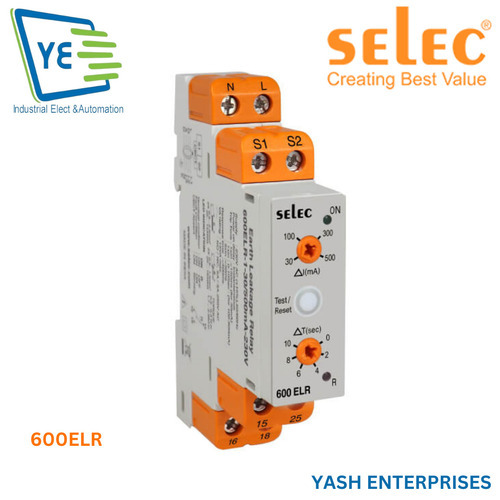

Selec Analog Earth Leakage Relay 1M

Name: Selec Analog Earth Leakage Relay 1M
Brand: Yash Enterprises
Price: 900 INR
Availability: InStock

Price 900 INR/ Piece

Get a Price/Quote

Selec Analog Earth Leakage Relay 1M Specification

Connector Type
Screw Clamp

Surface Finish
Matte

Humidity %
Up to 95% RH, Non-condensing

Operating Temperature
-10C to +55C

Shape
Rectangular

Mounting Type
DIN Rail

Overheating Protection
YES

IP Rating
IP20

Efficiency
High

Insulation Material
Polycarbonate

Feature
Test & Reset Function, Adjustable Sensitivity

Product Type
Analog Earth Leakage Relay

Application
Electrical protection against earth leakage

Protection Level
Earth Leakage Protection

Frequency (MHz)
50/60 Hz

Rated Voltage
230V AC

Energy Consumption
Low

Output Type
Relay Output (SPDT)

Color
White & Orange

Dimension (L*W*H)
18 mm (Width), Height approx. 85 mm, Depth approx. 67 mm

Weight
Approx. 100 g

Phase
Single Phase

Input Voltage
230V AC

Size
1 Module (DIN Rail Mount)

Material
Polycarbonate (PC) Enclosure

No Of Poles
1 Pole

Connection Type
Screw Terminal

Response Time
< 40 ms

Contact Rating
5A at 250V AC

Test Button
Provided

Trip Indication
LED

Mechanical Life
Over 10,000 operations

Model Number
1M

Sensitivity Adjustment Range
30 mA to 3 A

Conformity Standards
IS 12640, IEC 61008

Reset Mode
Manual

Storage Temperature
-20°C to +70°C

Selec Analog Earth Leakage Relay 1M Trade Information

Minimum Order Quantity
5 Number

Supply Ability
15 Per Day

Delivery Time
15 Days

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
Box

Main Export Market(s)
Eastern Europe, Australia, Asia, Western Europe, Central America, South America, North America, Africa, Middle East

Main Domestic Market
All India

About Selec Analog Earth Leakage Relay 1M

The Selec Analog Earth Leakage Relay 1M is a masterful, must-have device engineered for meritorious electrical safety. With a monumental sensitivity adjustment range from 30 mA to 3 A and a rapid response time (<40 ms), it ensures robust earth leakage protection. Featuring LED trip indication, test/reset functionality, and high mechanical endurance (10,000+ operations), it conforms to IS 12640 and IEC 61008 standards. Crafted from durable polycarbonate with an IP20 rating, this relay offers competitive pricing and the best price for wholesalers, exporters, and manufacturers in India.

Suitable Usage and Applications of Selec Analog Earth Leakage Relay 1M

Ideal for safeguarding single-phase electrical installations, the Selec Analog Earth Leakage Relay 1M is suitable for residential, commercial, and industrial use. This device is especially recommended for environments demanding reliable earth leakage protection, such as switchboards and panel assemblies. Application media include low-voltage electrical circuits operating at 230V AC. Its design allows easy DIN rail mounting, making it perfect for integration within compact and modular electrical systems.

List Price, Payment Terms and Certifications for Selec Analog Earth Leakage Relay 1M

Selec offers this earth leakage relay at a competitively set list price, appealing to manufacturers, wholesalers, and exporters. Flexible payment terms and a practical sample policy can be tailored as per logistics requirements, ensuring smooth goods transport. The relay is certified under IS 12640 and IEC 61008, validating its performance and reliability. Efficient logistics and streamlined order processes guarantee timely delivery and compliance with global quality standards.

FAQ's of Selec Analog Earth Leakage Relay 1M:

Q: How do I install the Selec Analog Earth Leakage Relay 1M?

A: The relay is designed for easy DIN rail mounting. Connect the wiring to the screw clamp terminals as per the installation manual, ensuring the device is securely fitted and all connections adhere to safety standards.

Q: What is the process for testing and resetting the relay?

A: A built-in test button allows you to simulate an earth leakage condition and verify the functionality. If tripped, the relay can be reset manually using the provided reset button for continued protection.

Q: When should I use the adjustable sensitivity feature?

A: Adjustable sensitivity (30 mA to 3 A) allows you to tailor protection levels based on specific requirements-lower settings for residential use or higher for industrial circuits, ensuring optimal safety against leakage faults.

Q: Where is this relay best applied?

A: The relay is best suited for panel boards, switchboards, and other modular set-ups in residential, commercial, or industrial settings that require reliable single-phase earth leakage protection at 230V AC.

Q: What are the benefits of using this earth leakage relay?

A: It delivers rapid response time, high reliability (over 10,000 mechanical operations), low energy consumption, and compliance with international safety standards, making it a cost-effective and dependable solution for electrical protection.
