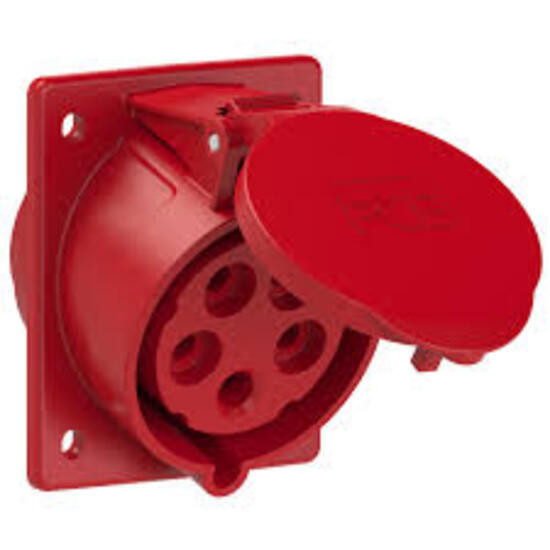

Hensel ( PCE) Socket Angled / Straight 63A 5P IP44 ( Model No : 4351-6fc)

Price 3056.00 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

Hensel ( PCE) Socket Angled / Straight 63A 5P IP44 ( Model No : 4351-6fc) Specification

IP Rating
IP44

Product Type
Industrial

Protection Level
Other

Frequency (MHz)
50 Hertz (HZ)

Rated Voltage
220 Ampere (A)

Color
Red

Dimension (L*W*H)
112x88x80

Weight
230 Grams (g)

Warranty
1 Year

Phase
3

Input Voltage
400 Volt (V)

No Of Poles
5

Material
Plastic

Hensel ( PCE) Socket Angled / Straight 63A 5P IP44 ( Model No : 4351-6fc) Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
15 Pieces Per Day

Delivery Time
15 Days

Packaging Details
Box

Main Export Market(s)
Middle East, Western Europe, Asia, Eastern Europe, South America, Australia, Africa, Central America, North America

Main Domestic Market
All India

About Hensel ( PCE) Socket Angled / Straight 63A 5P IP44 ( Model No : 4351-6fc)

CEE-flanged socket sloping (100x112) 63A 5p 6h IP44 POWER TWIST
housing material: PA6
rated current: 63A
number of poles: 5 (3P+N+PE)
clock-position: 6h
rated voltage/frequency: 200/346V - 240/415V / 50+60Hz
contacts: brass, with lamellar spring (CuBe)
connection technology: frame terminals with screws
dimensions (flange/fixing center): 100x112 mm / 80x88 mm
IP protection class: IP44
